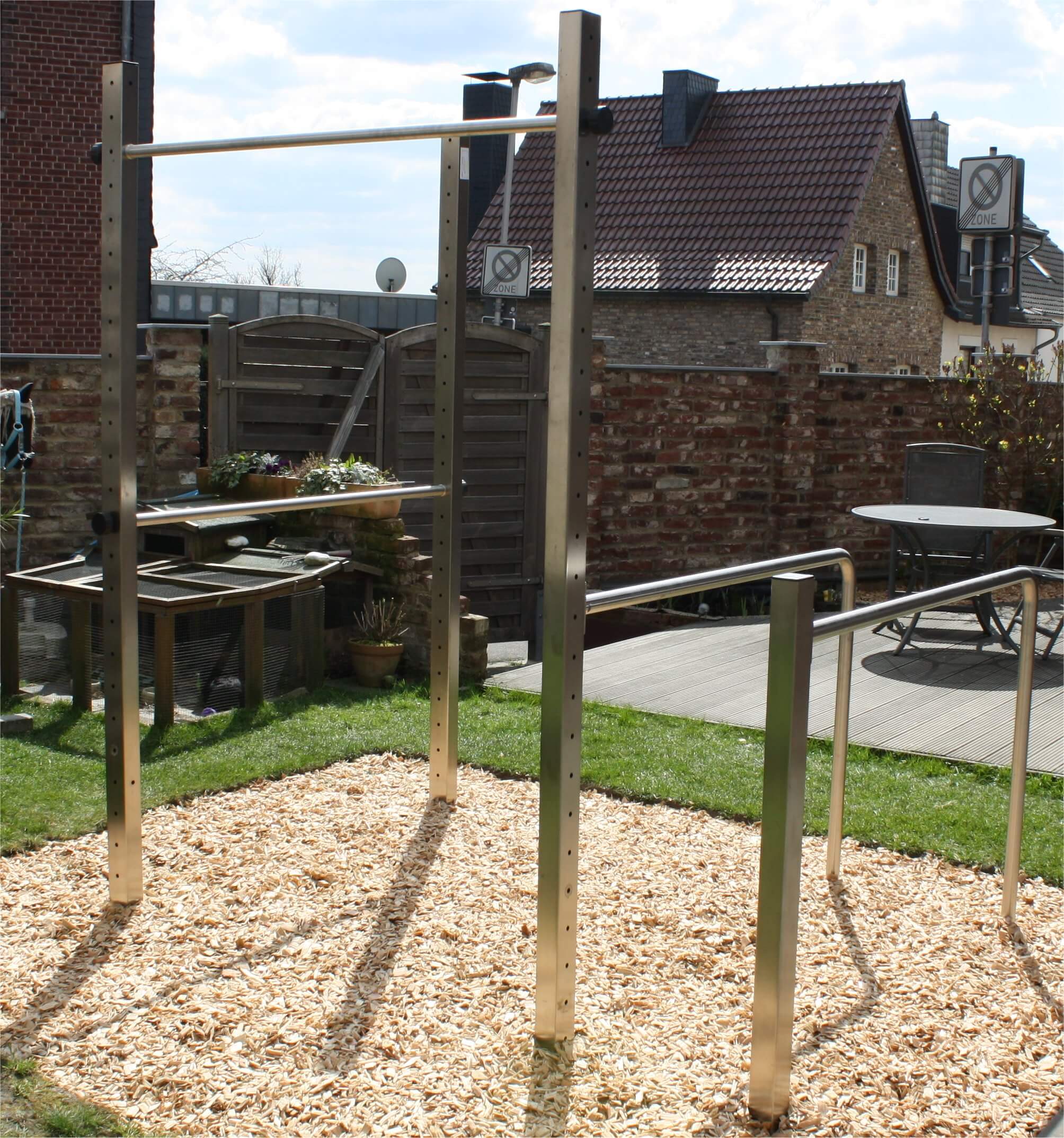

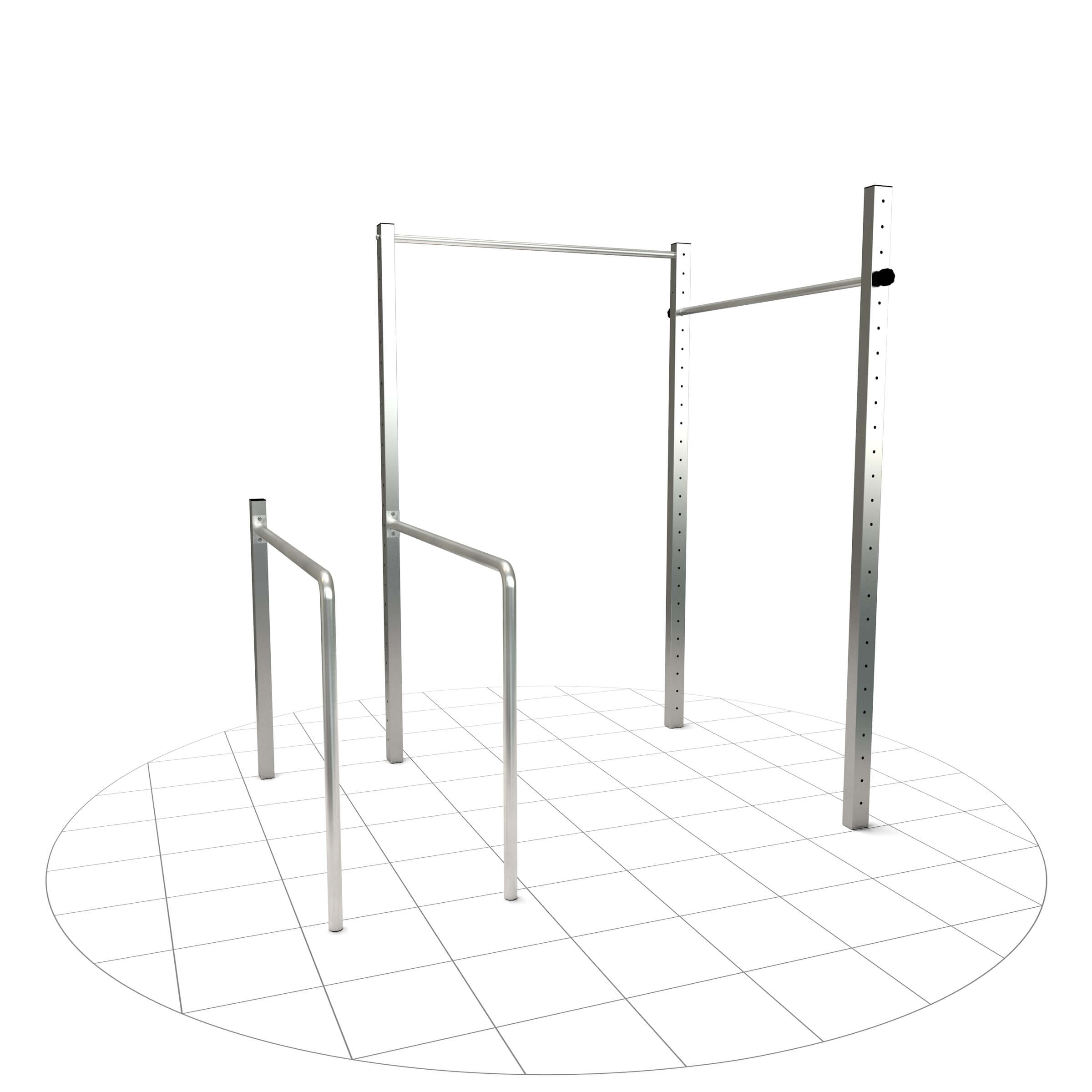

One of our outdoor bestsellers with dip bars and two gymnastics bars, around the corner or side by side.
Here you can not only do gymnastics, but also at the dip bars be trained. Can be used for a wide range of training and playing opportunities, even where space is limited, if a rung ladder is not required.
An horizontal bar is adjustable from 15 cm to 235 cm in 24 steps. The other higher horizontal bar can be mounted at three heights of 295, 286 and 277 cm in the corner setup. When the pull-up bars are set up next to each other, both bars are fully adjustable, so that a variety of freeletics and calisthenics exercises are possible with your own body weight.
Adults as well as children and young people quickly find the right training conditions.
The quick adjustments are already included in the scope of delivery.
The post strength is, as with our large station, already 3mm.

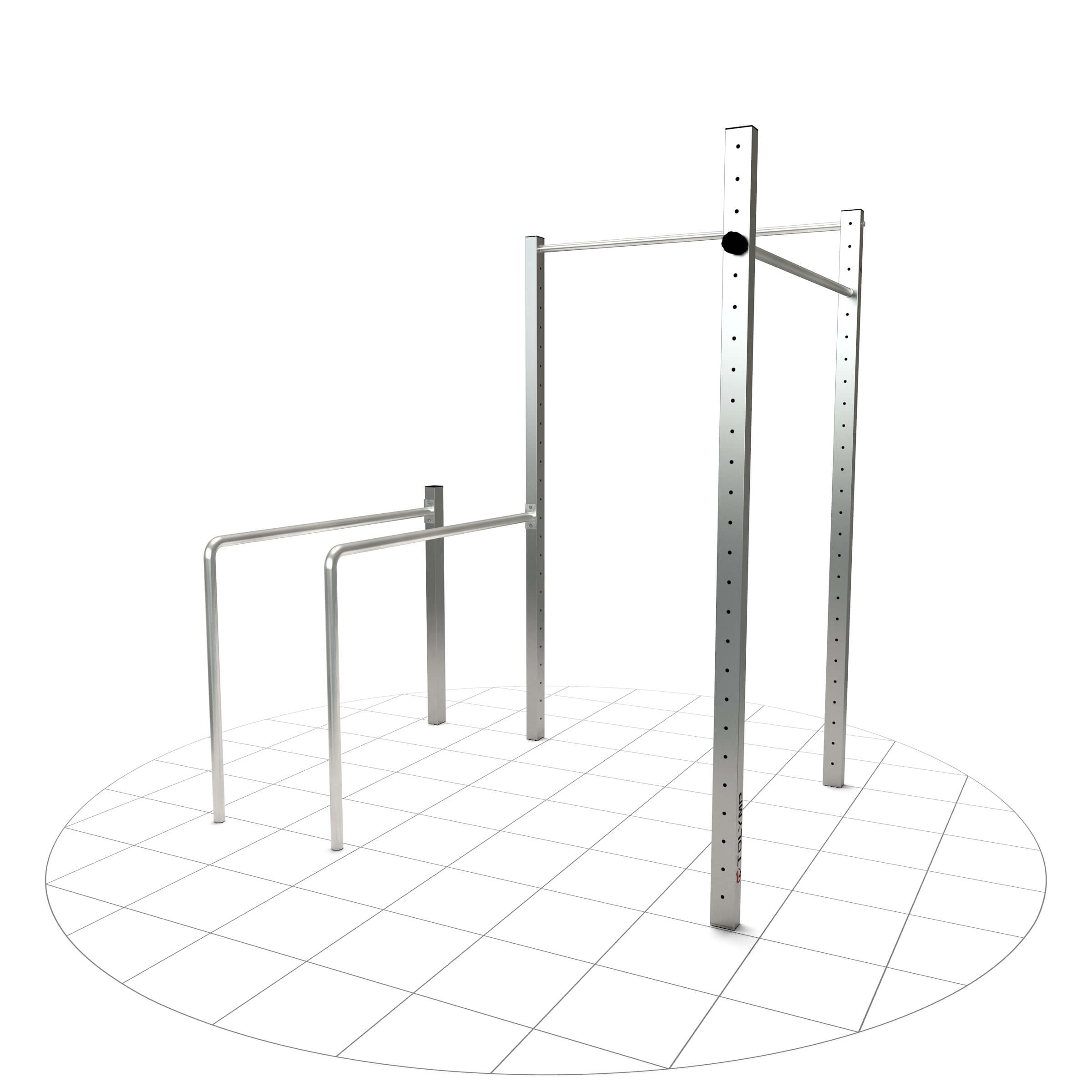

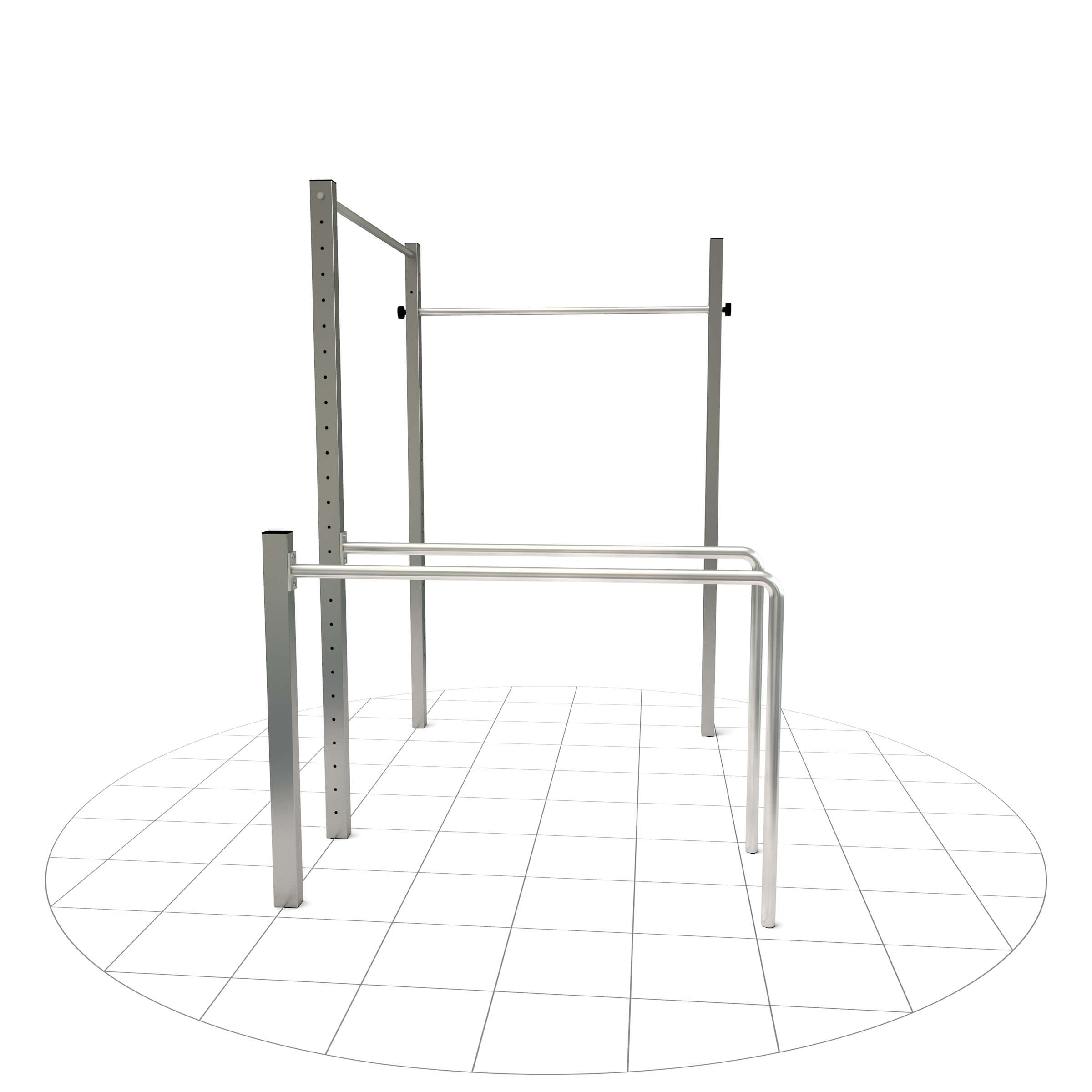

The two gymnastics bars can be set up as a corner solution or side by side.
Please note the information and the selection option below.
Stable construction, made entirely of V2A stainless steel DIN 1.4301.
Our outdoor gym products are characterized by the use of high-quality materials and professionally executed, high-quality workmanship.
The material is completely machine ground, all welds are clean.
We grant a 10-year guarantee on welds and rust-free.
The stainless steel components
Our products are characterized by the use of high-quality teile and professionally executed, high-quality workmanship. The material is completely machine ground, all welds are clean.
The dimensions of the posts are 80 x 60 mm, the wall thickness is 3 mm (reinforced version).
Quick adjustment of the gymnastics bars without tools (included)
You can adjust the gymnastics bar quickly and do not need any additional tools.
The central screw has a solid star grip, which you can use to tighten the rod on each side.
For this purpose, the gymnastics bar has a CNC-milled turned part at both ends, which is equipped with an M12 thread. In addition, the two contact surfaces facing the post are knurled to effectively prevent the poles from spinning.
Professional gymnastics bar with welded straps (extra charge)
With this version we deliver per side 2 strong star grip nuts with which you can quickly tighten or loosen the two M12 screws.
Please note that in the case of a corner installation, only the 240 cm high pole is fully height-adjustable.
The 300 cm high bar can then only be adjusted in three heights, since the corner post only has three holes in the second axis.
Assembly and installation of the system
In principle, the system can be set up at any location. The posts are fastened in approx. 60 cm deep concrete foundations. The stainless steel posts are concreted directly into the concrete.
For hassle-free assembly you will receive:
- All necessary elements and screw connections. All that is missing is the ready-mixed concrete (available in bags at hardware stores)

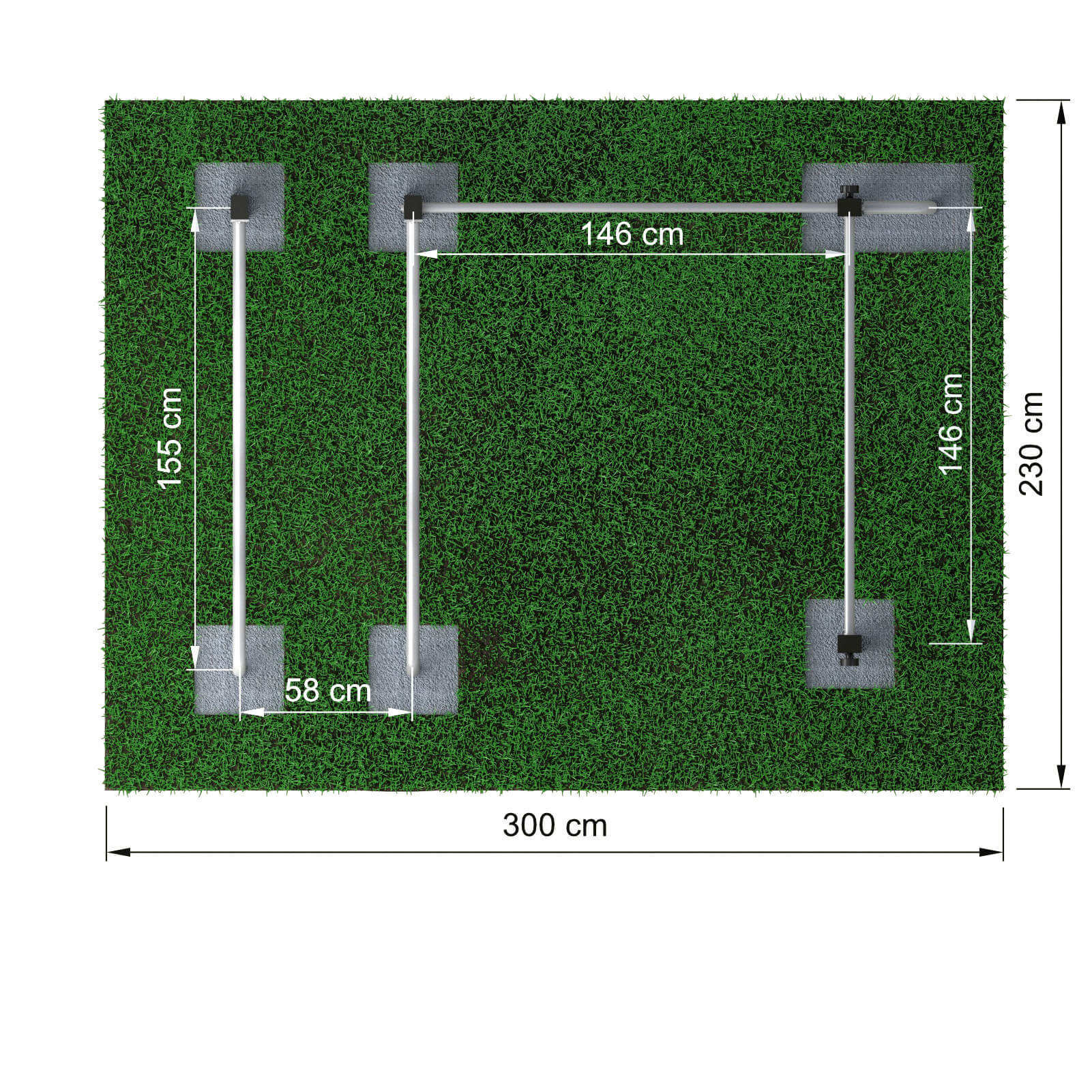

- Assembly instructions including foundation plan and view sketches
- Threaded rods size M12 including screw connections for millimeter-precise alignment of the system
Alignment using threaded rods
The parallel, perpendicular and aligned alignment of the posts to each other is of great importance for a stable installation of the system. Using the supplied threaded rods in size M12 and the gymnastics bars, the station can be precisely aligned before concreting. This ensures that the distance between the posts is accurate to the millimeter until the concrete has hardened.
Further details can be found in this article explained.
The ground can be designed as a lawn, but fall protection mats or fall protection plates have even better properties. These items are available in square or rectangular form in our shop in various colors and thicknesses. These mats have better fall protection cushioning than turf.
You can find more information on this on our website fall protection plates.
assembly sketch sfdf sdf a
Floor design with fall protection plates
Use of the threaded rods
