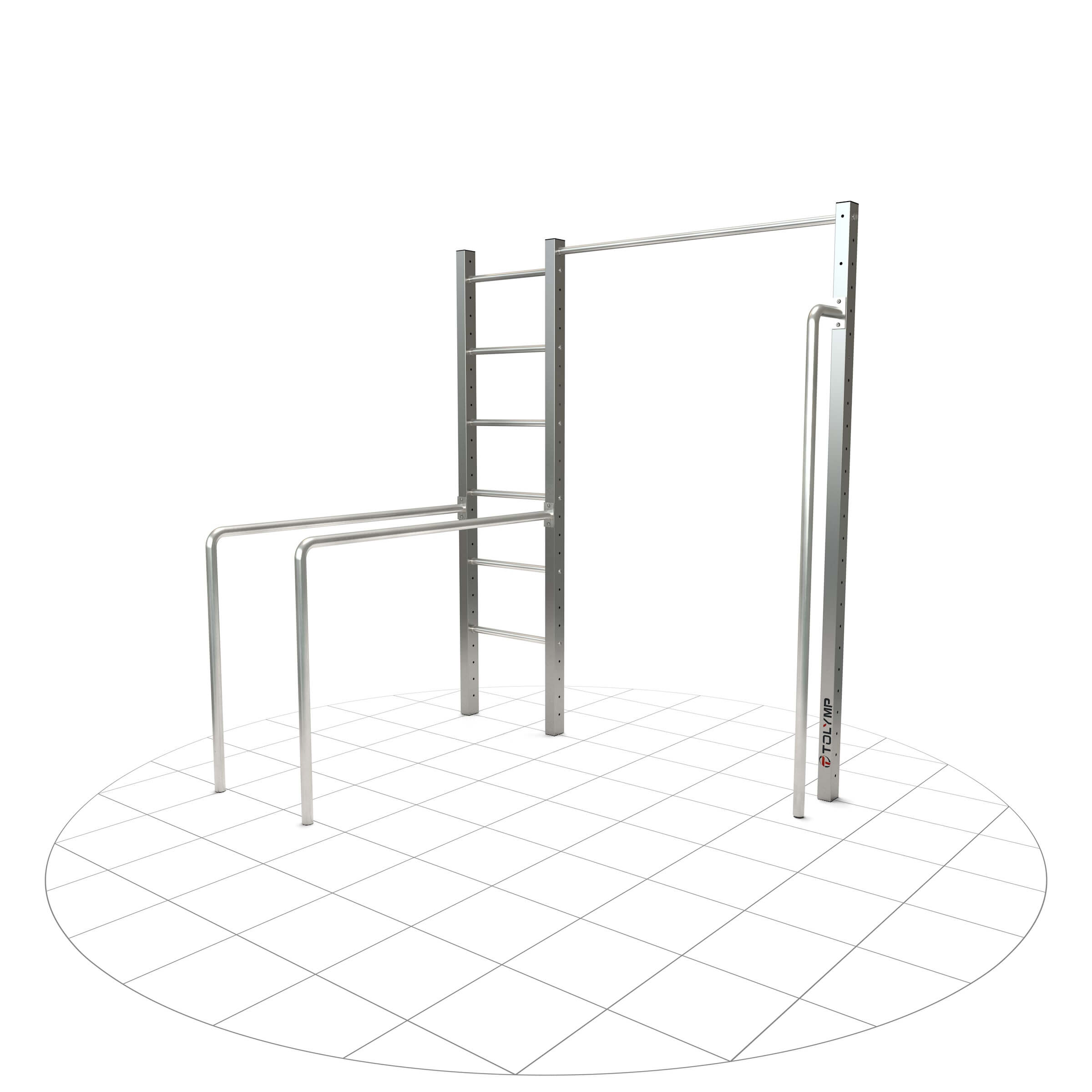

Also one of our bestsellers, which already has all the essential components

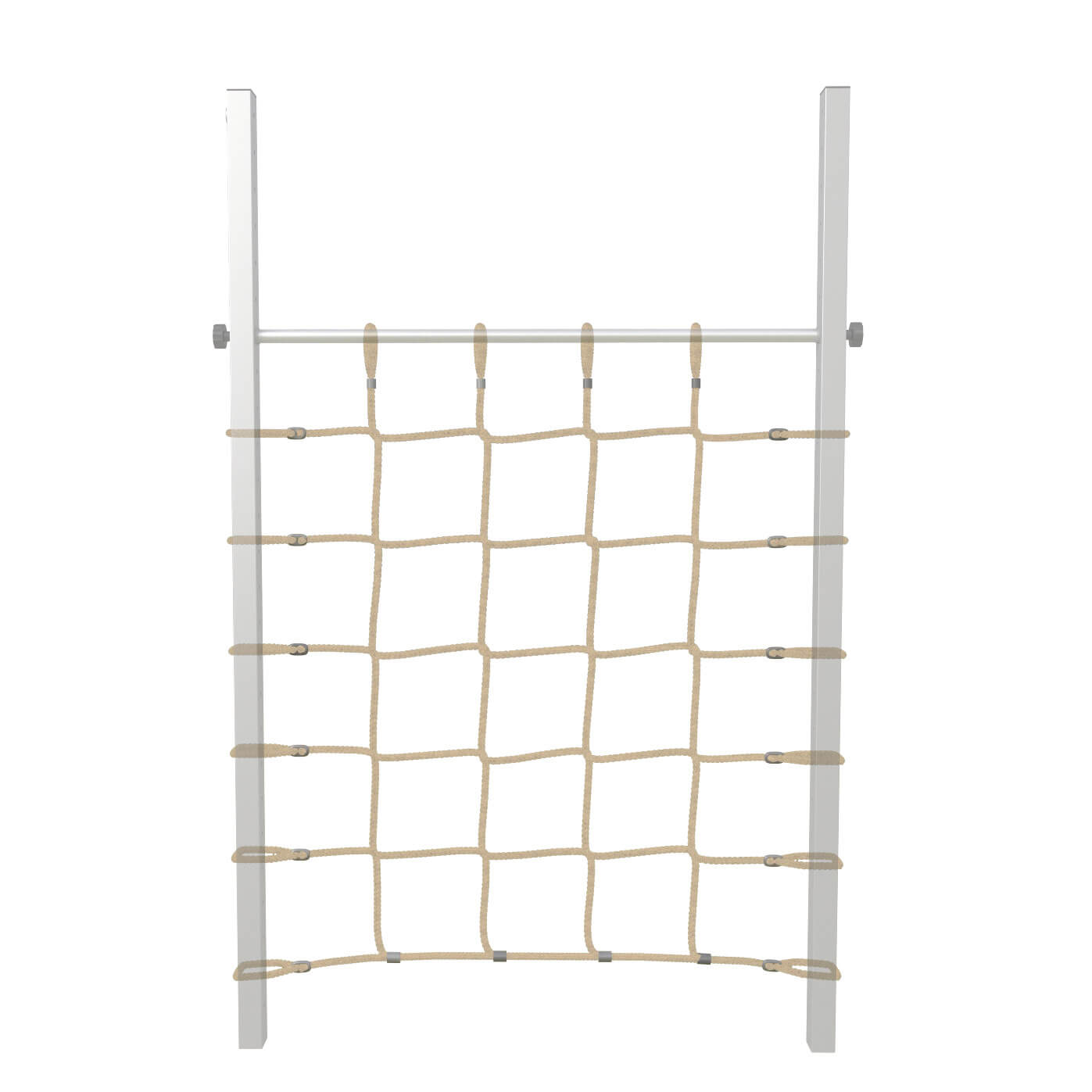

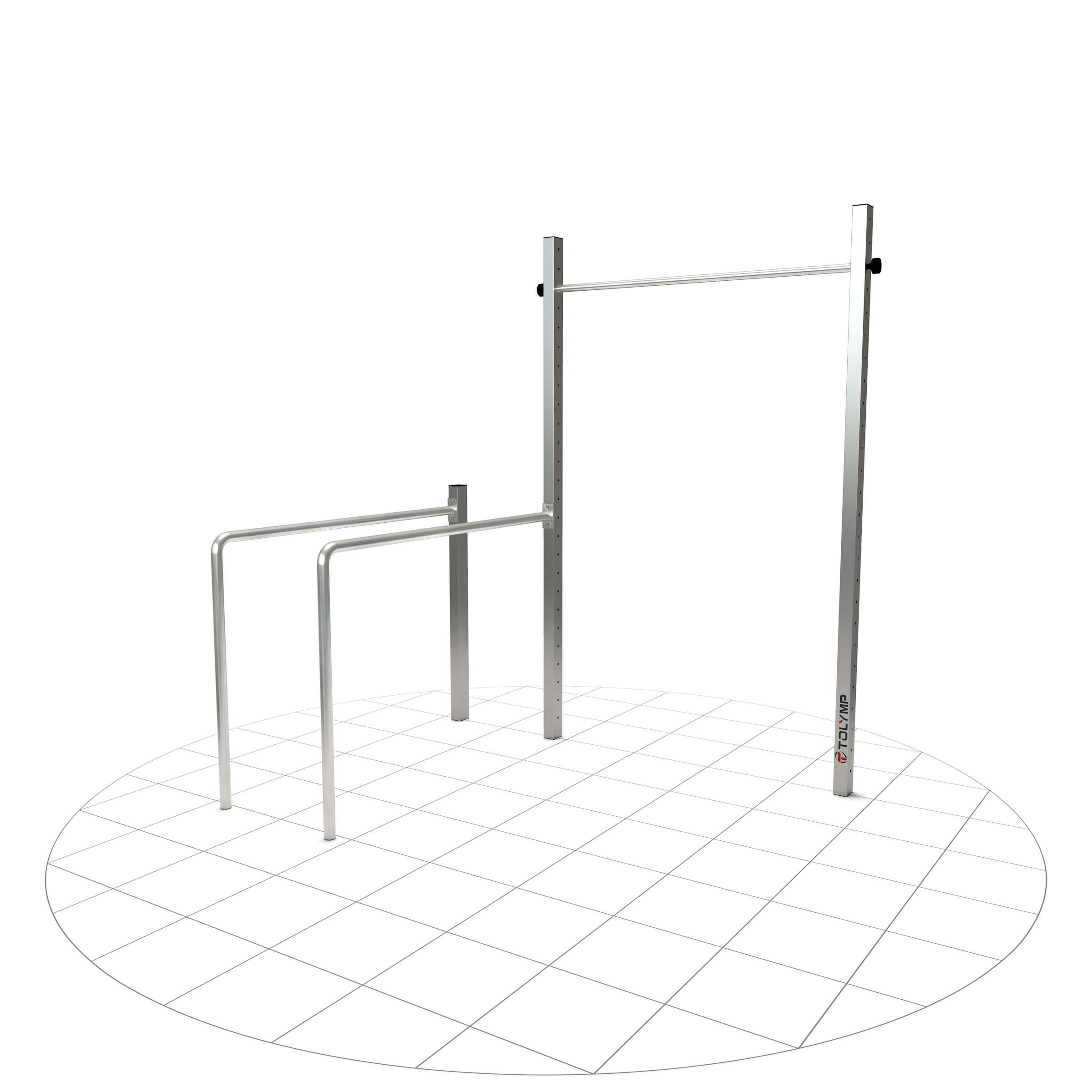

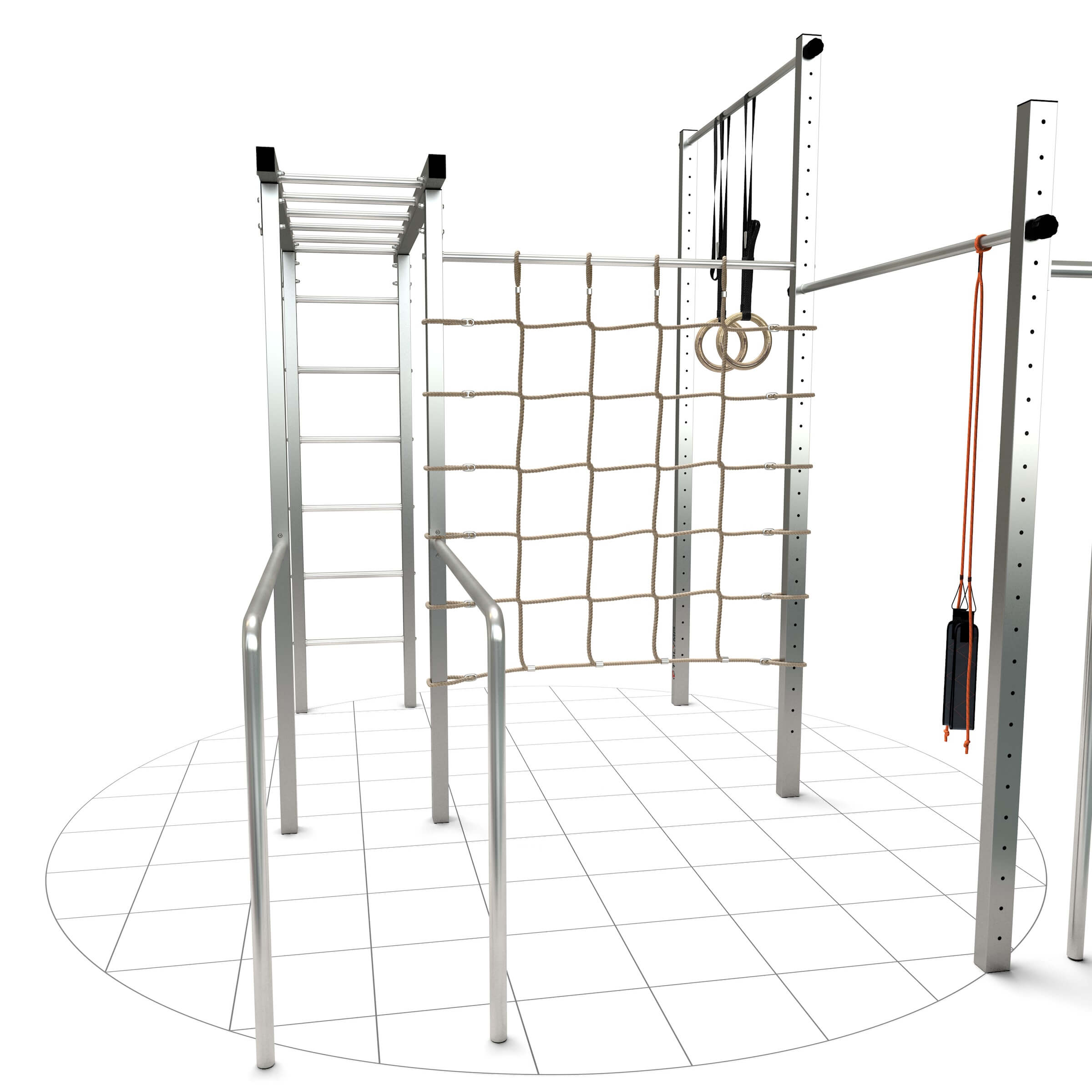

Equipped with 1 gymnastics bar, dip bars and rung ladder. On request also with Human Flag pole, climbing net and in an extra high 3 meter version for mounting gymnastics rings.

Stable construction, made entirely of V2A stainless steel.



info icon Information & details


Standard version for normal gymnastics and pull-up activities

In the standard scope of delivery, it has a welded-in one on each side M12 thread insert.
This will come with a central screw connection screwed and held reliably from the outside.
The gymnastics bar has a wall thickness of 2,5 mm.

Special version for maximum loads
A variant with two welded-on mounting straps is available for an extra charge, with two M12 screws on each side holding the rod. This also applies to reliably prevents the rod from turning under heavy loads.
The screws are here as button head screws designed so that there is no risk of injury from protruding screw heads on the inside of the gymnastics bar.
The gymnastics bar has a wall thickness of 3,0 mm.
The screw connection on the outside also has no sharp edges and is done with a self-locking cap nuts.

info icon Information & details

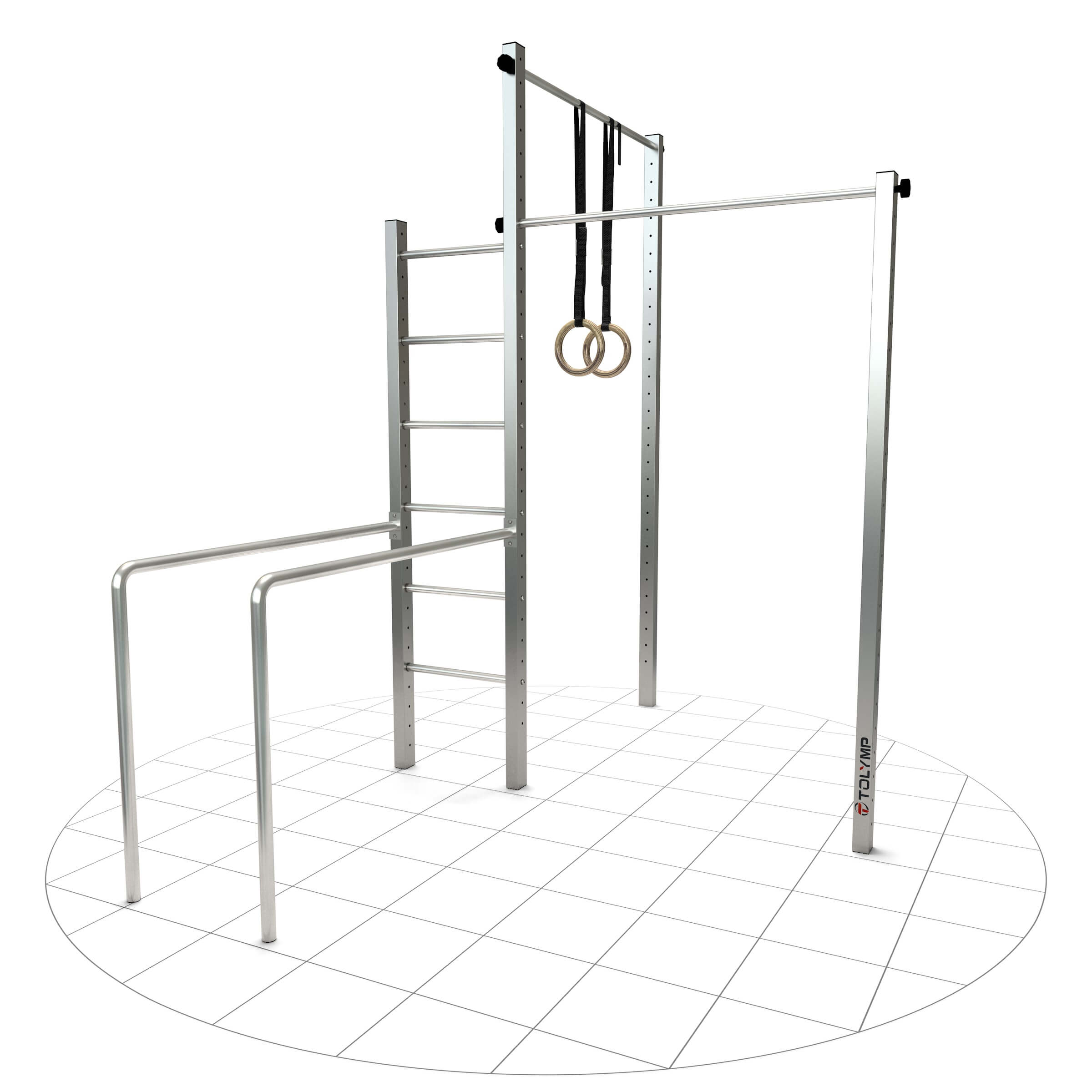

with two extra-long posts of 360 cm, a gymnastics bar can be reached at a height of 3 meters. Very well suited eg for use with gymnastic rings.
Components of the extension: an additional pull-up bar with M12 central screw connection and a high post with a total length of 360 cm.
In addition, a post of the rung ladder is also made with a length of 360 cm.
The gymnastics rings are not included, so you can use your own rings or choose from our range of accessories.

Empty
info icon Information & details

Human flag pole (or fire brigade pole): Stable design with a diameter of 43mm, usable length 215 cm (+ 60 cm foundation).
Requires the reinforced post profile with a profile thickness of 3mm.



Expected to be with you on January 28.02.2025th, XNUMX

24/7 hotline

Always avaliable

over 10.000 happy customers

4,9 Google Stars

100% Satisfaction Guarantee

Free Returns

Description

Also one of our bestsellers, which already has all the essential components.

A fully equipped facility for a variety of training and playing opportunities for the whole family. You can adjust the pull-up bar according to your wishes in 25 steps from 15 cm to 240 cm. Adults as well as children and young people will quickly find the right training conditions.

Stable construction, made entirely of V2A stainless steel DIN 1.4301.

Our outdoor gym products are characterized by the use of high-quality materials and professionally executed, high-quality workmanship.
The material is completely machine ground, all welds are clean.
We grant a 10-year guarantee on welds and rust-free.


The stainless steel components

Our products are characterized by the use of high-quality teile and professionally executed, high-quality workmanship. The material is completely machine ground, all welds are clean.

The dimensions of the posts are 80 x 60 mm, the wall thickness is 3 mm (reinforced version).

Steelwood Starterhorn stainless steel components

Adjustment of the turn bar

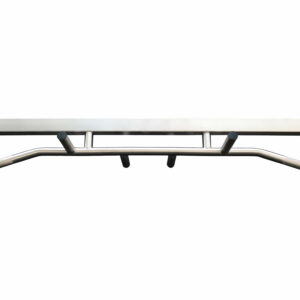

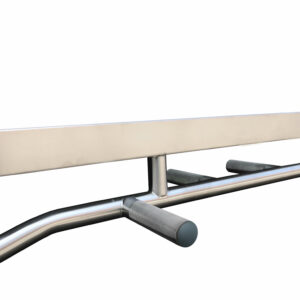

Execution of the pull-up bar
The gymnastics bars are attached and the height is adjusted using two M12 star grip screws.
For this purpose, the gymnastics bar has a CNC-milled turned part at both ends, which is equipped with an M12 thread. In addition, the two contact surfaces facing the post are knurled to effectively prevent the poles from spinning.
The pull-up bar can therefore be adjusted without the use of tools.


Assembly and installation of the system

In principle, the system can be set up at any location. The posts are fastened in approx. 60 cm deep concrete foundations. The stainless steel posts are concreted directly into the concrete.

For hassle-free assembly you will receive:

  • All necessary elements and screw connections. All that is missing is the ready-mixed concrete (available in bags at hardware stores)
  • Assembly instructions including foundation plan and view sketches
  • Threaded rods size M12 including screw connections for millimeter-precise alignment of the system

Alignment using threaded rods

The parallel, perpendicular and aligned alignment of the posts to each other is of great importance for a stable installation of the system. Using the supplied threaded rods in size M12 and the gymnastics bars, the station can be precisely aligned before concreting. This ensures that the distance between the posts is accurate to the millimeter until the concrete has hardened.
Further details can be found in this article explained.

Floor design

The ground can be designed as a lawn, but fall protection mats or fall protection plates have even better properties. These items are available in square or rectangular form in our shop in various colors and thicknesses. These mats have better fall protection cushioning than turf.
You can find more information on this on our website fall protection plates.

assembly sketch sfdf sdf a

Floor design with fall protection plates

Steelwood Starterhorn threaded rods

Use of the threaded rods

Further information

Technical data at the top of the tab TECHNICAL DATA
dimensional sketch in the pictures at the top of this page
Product information as a PDF file Start PDF download
360° all-round view
at the top of this page
FAQs on the website FAQ
Shipping costs on the website Shipping costs

Technical data
Weight

95,000000 kg
ladder

Number of pull-up bars

dip bars

Can be mounted with dip bars 150 cm long, 110 cm or 120 cm high, diameter 43 mm

3 meters special height

gym bar height

From 3-year-old toddlers to adults, our gymnastics bars always fit. Adjustable bar heights standard version: 90, 110, 130, 150, 170 cm

Special version 200 cm long posts :
95, 115, 135, 155, 175, 195 cm
Incidentally, the maximum height of 195 cm is ideal for pull-up exercises by adults, as the bar can be loaded up to 120 kg.

Gymnastic bar adjustable in 9 cm increments between 15 and 240 cm (optionally 300 cm).

rec. Floor space

Post dimension and wall thickness

Human flag pole

Dip bar dimensions

load per element

Execution of the gymnastics bars

Rung ladder dimensions
