TOLYMP Cross

New product

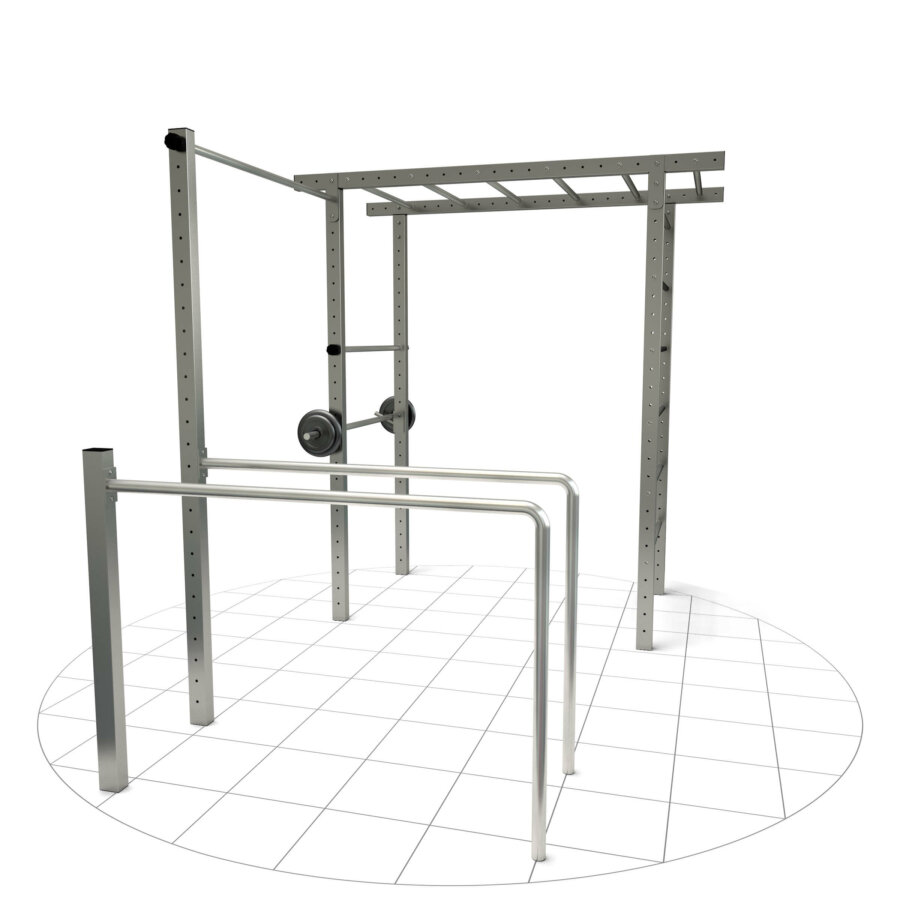

A station specially designed for outdoor fitness training: two pull-up bars, dip bars, ladder rails, monkey bar and a barbell holder (accessory)

A fully equipped facility for numerous outdoor training opportunities, but also usable by the whole family. The pull-up bars are adjustable in 25 steps, all rungs are also individually adjustable.

    Stable construction, made entirely in V2A stainless steel DIN 1.4301.

    More details

    € 2.198,00

    Weight: kg

    Tax included
    • no bar-bell brackets
    • with bar-bell brackets
    • 1x M12 centrally mounted screw bolt (standard)
    • Pro-training bar, mounting brackets each with 2xM12 screws, length 140 cm
    • Pro-training bar, mounting brackets each with 2xM12 screws, length 160 cm
    • Pro-training bar, mounting brackets each with 2xM12 screws, length 180 cm
    • Non quick-release
    • With quick-release
    Delivery time 2 weeks **

    - +


    More info

    A station specially designed for outdoor fitness training: two pull-up bars, dip bars, ladder rails, monkey bar and a barbell holder (accessory)

    A fully equipped facility for numerous outdoor training opportunities, but also usable by the whole family. The pull-up bars are adjustable in 25 steps, all rungs are also individually adjustable.

    • The two pull-up bars can be adjusted in 25 steps from 15 cm to 240 cm.
    • The vertical rung ladder also has 6 rungs, which you can mount individually in a 9cm pitch
    • The dip bar can alternatively be delivered in a bar length (70 cm instead of 150 cm). The bar width can be freely defined during construction.

    Stable construction, made entirely in V2A stainless steel DIN 1.4301.

    Our outdoor gym products are characterized by the use of high-quality material and a professionally executed and high-quality workmanship.
    The material is completely machined, all welds are clean.
    We provide a 10-year warranty on welds and rust-free.



    The stainless steel components

    Our products are characterized by the use of high-quality material as well as a professionally executed and high-quality workmanship. The material is completely machined, all welds are clean.

    The dimensions of the vertical posts are 80 x 60 mm and a reinforced wall thickness of 3 mm.

    Steelwood Starterhorn Edelstahl-Komponenten

    Adjustment of the gymnastic bars

    Execution of the chin-up bar
    The attachment of the gymnastic bar as well as the adjustment of the height is done by means of two M12 star knob screws.
    For this purpose, the turn bar has a CNC machined turned part at both ends, which is equipped with one M12 thread each. In addition, the two contact surfaces are provided with a knurl to the post to effectively prevent spinning of the rods.
    The adjustment of the turntable height can thus be made without the use of tools.


    Assembly and installation of the equipment

    In principle, the equipment can be installed at any installation site. The posts are secured in concrete foundations, which are approx. 60 cm deep. The stainless steel posts are cemented directly into the cement, the wooden posts in galvanized wooden post anchors.

    To ensure seamless installation, you will receive:

    • All the required fixtures and fittings. The only thing missing is the ready-mixed concrete (sacks of concrete mix are available at hardware shops)
    • Assembly instructions, incl. foundation plans and elevation sketches
    • Threaded rods incl. screw connections for millimetre precision alignment of the equipment

    Alignment using threaded rods

    The parallel, perpendicular and exact alignment of the posts is of huge importance for stable installation of the equipment. By using the M12 size threaded rods and the horizontal bars, the equipment can be exactly aligned before concreting. This way, the distance of the posts will be ensured with millimetre precision until the concrete hardens.

    Floor design

    Lawn can be used for the floor, but fall-protection mats or sheets have better properties. These items are available from specialty stores in square or rectangular shapes and in different colours. In comparison to grass, these mats offer better protection against falls.

    Principle sketch

    Floor design with fall protection plates

    Steelwood Starterhorn Gewindestangen

    Use of threaded rods

    Further information

    Technical specifications at the top of the tab TECHNICAL DATA
    Dimensional sketchat the top of this page at the pictures
    Product information as a PDF filestart PDF-download
    360 ° round view

    at the top of this page
    FAQat the page FAQ
    Shippingon the site Shipping


    Data sheet
    Required floor area including edge areas270 x 370 cm
    Number of pull-up bars2 bars
    Execution of gymnastics barsmade of polished V2A stainless steel, diameter 33.7 mm, wall thickness 2.5 mm, length 140 cm
    Height of gymnastics barsGymnastic bars adjustable in 9 cm grid between 15 and 240 cm (optional 300)
    Post dimension and wall thickness80x60x3 mm
    Dip barswith dip bars in length 150 cm, height 110 cm or 120 cm mountable, diameter 43 mm
    Dip bars dimensionsLength 150 cm, height 110 cm or 120 cm, diameter 43 mm
    Ladderwith ladder
    Ladder dimensionsWidth 100 cm, diameter 34 mm, consisting of 6 rungs individually adjustable
    Human-Flag baravailable with Human-Flag pole
    Burdenup to 150 kg per training element
    Monkey-BarWidth 100 cm, diameter 34 mm, length 220 cm, consisting of 6 rungs individually adjustable

    Test live in 3D

    Per app in the garden

    Place the gymnastic bar virtually and realistically in your garden.
    Your family and friends will be amazed.
    Also check the size directly at the planned location.

    That's how it works

    1. Download the AUGMENT app on your tablet or smartphone



    2. Open the product on your mobile device and click the button
      Open TOLYMP Cross

    Thus, the station loads in the AUGMENT App.
    Watch demo video

    Product Options
    Bar-bell brackets (1 pair)
    Bar-bell brackets (1 pair)

    Ideal for storing a barbell. You can attach the two brackets to the required length in a 9 cm grid.

    The area of the bar support is covered with plastic to reduce rattling noise.

    no bar-bell brackets
    with bar-bell brackets
    Training bar fixtures
    Training bar fixtures


    Standard design for normal gymnastics and pull-up activities

    The standard delivery package includes a welded M12 threaded insert on each side of the gymnastics bar.
    This is bolted from the outside with a central screw and held reliably.
    The gymnastics bar has a wall thickness of 2.5 mm.


    Special design for maximum load
    A version with two welded fastening straps is available at extra cost, with two M12 screws per side holding the rod. This reliably prevents turning of the rod even under heavy loads .
    The screws are designed as Allen head screws so that there is no danger of injury from protruding parts on the inside of the gymnastics bar The turn bar has a wall thickness of 3.0 mm.
    The screw connection on the outside also has no sharp edges and is done using self-locking cap nuts .

    1x M12 centrally mounted screw bolt (standard)
    Pro-training bar, mounting brackets each with 2xM12 screws, length 140 cm
    Pro-training bar, mounting brackets each with 2xM12 screws, length 160 cm
    Pro-training bar, mounting brackets each with 2xM12 screws, length 180 cm
    Quick-release type
    Quick-release type

    For both types of attachment described above, we have each developed a quick adjustment.
    You can use it to quickly adjust the height of the rod without tools.

    Standard version with M12 central screw
    The central screw has a solid star grip , which you can use to open the bar tighten each side.


    Special design with welded tabs
    In this version, we deliver 2 strong star grip nuts on each side with which you can quickly fix or loosen the two M12 screws.

    Non quick-release
    With quick-release
