New in programm - STEELWOOD
The unique combination of larch wood and V2A stainless steel

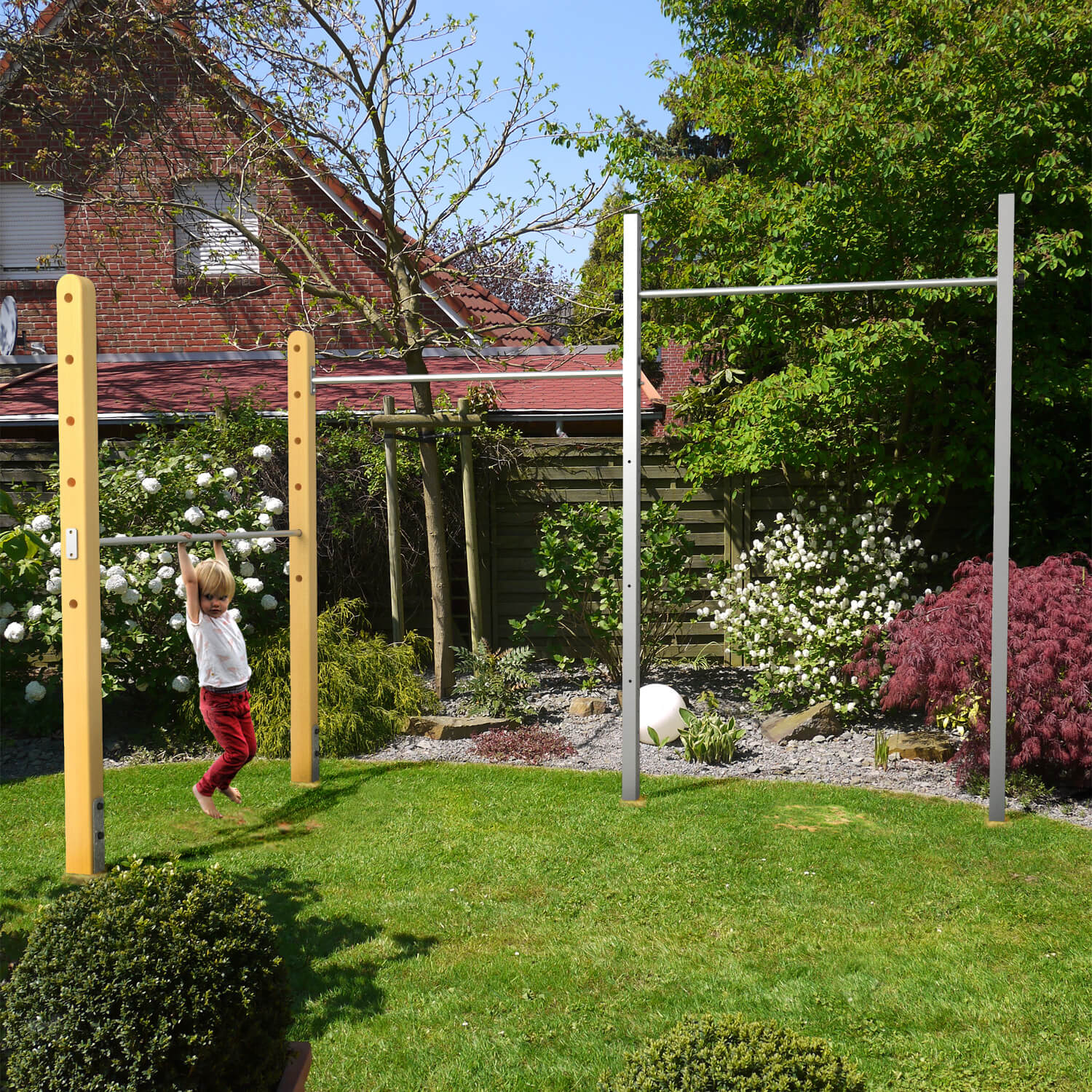

A fully equipped facility for a variety of training and playing opportunities for the whole family.
- In Chin Up in the parents' area you can choose from 25 levels from 15 cm to 240 cm per supplied quick adjustment to adjust.
- In gymnastics bar, which connects both segments, can be fixed in a 9 cm grid between wooden and stainless steel posts.
- The third turn bar in the larch wood area 6-way adjustable.
The stainless steel components
Our products are characterized by the use of high-quality teile and professionally executed, high-quality workmanship. The material is completely machine ground, all welds are clean.
The dimensions of the vertical posts are 80 x 60 mm with a reinforced wall thickness of 3 mm.

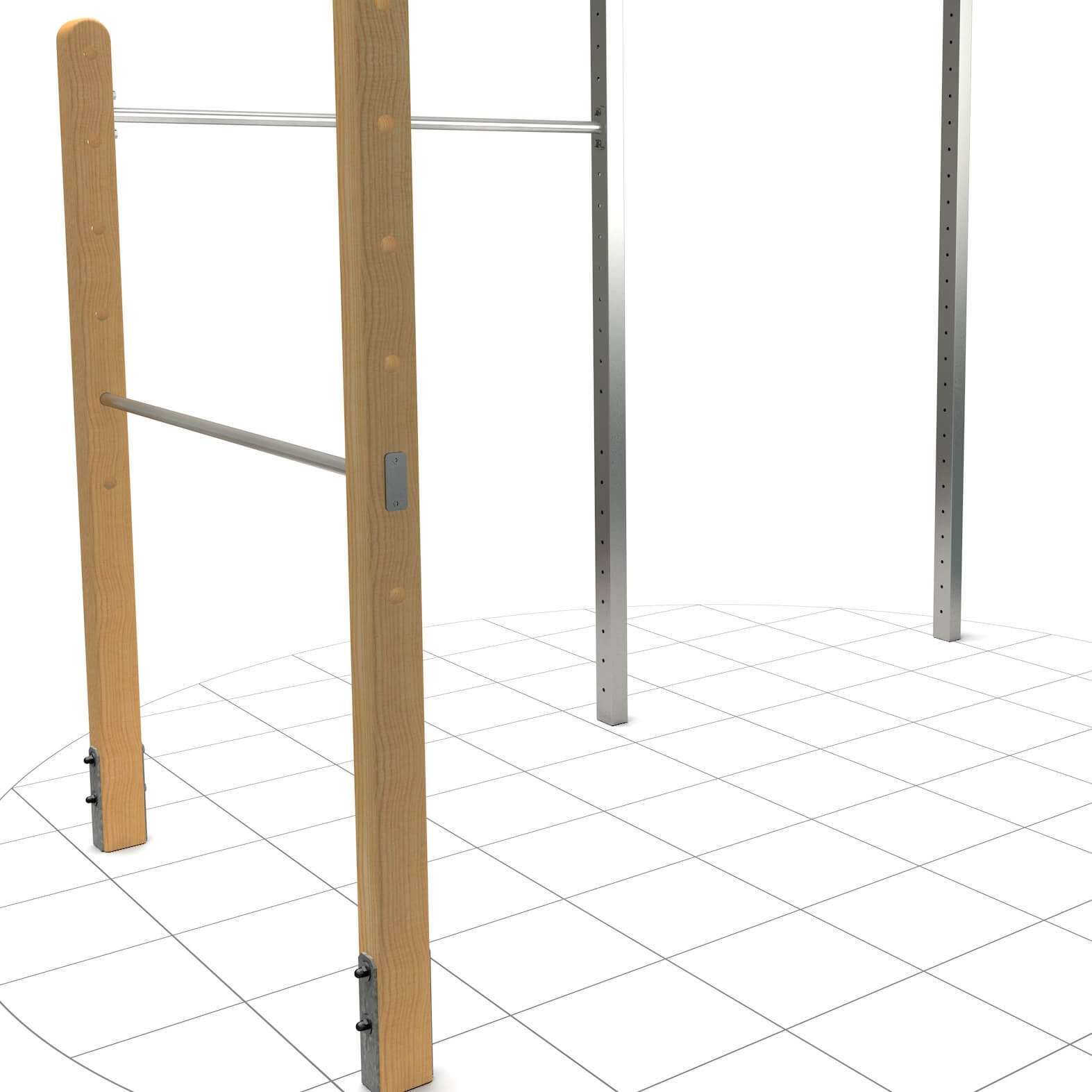

The wooden elements
Completely finished posts untreated, non-toxic larch wood in the dimensions 9 x 9 cm, 200 cm long.
All edges and cut surfaces are softly rounded, the upper end is designed in a shapely semi-circle.
The larch wood used is of a very good quality, which is wood seedless and dried. We buy this wood directly from local sawmills that work according to our quality requirements
A Treatment with wood preservatives not necessary. Even jetties are made from these extremely robust woods. Therefore, no pollutants escape from the wood, as is the case with pressure-treated coniferous wood. In addition, the wood has a noble look, which together with the stainless steel bar makes the gymnastics bar a highlight in your garden.
You are of course free to treat the wood with wood preservative oil, paint, glaze or similar for visual reasons.
Delivery incl. galvanized H post base for embedding in the ground.
Please note that the lower mounting holes are not drilled for mounting in the H-post supports. These must be drilled on site using a 12mm drill.
Attachment and adjustment of the gymnastics bars
Standard version for normal gymnastics and pull-up activities
In the standard scope of delivery, the gymnastics bar has a welded CNC-milled turned part at both ends, each of which is equipped with an M12 thread. In addition, the two contact surfaces on the post are knurled to prevent the rods from spinning.
The gymnastics bar is screwed on from the outside with a central screw connection and is thus held in place reliably.
This version is particularly suitable for use as a pull-up bar. In combination with the optionally available quick adjustment, the height of the gymnastics bar can be adjusted quickly.
Special version for maximum loads
A variant with two welded-on mounting straps is available for an extra charge, with two M12 screws on each side holding the rod. Furthermore, the wall thickness of the rod is 3 mm compared to 2,5 mm for the standard version.
This reliably prevents the rod from turning, even under heavy loads, e.g. from swing exercises.
The screws are designed as pan-head screws, so that there is no risk of injury from protruding screw heads on the inside of the gymnastics bar.
The screw connection on the outside also has no sharp edges and is done using self-locking cap nuts.
Adjustment of the gymnastics bars
In the stainless steel area with quick adjustment:
The gymnastics bar is attached and the height is adjusted using two M12 star grip screws.
For this purpose, the gymnastics bar has a CNC-milled turned part at both ends, which is equipped with an M12 thread. In addition, the two contact surfaces facing the post are knurled to effectively prevent the poles from spinning.
The height of the gymnastics bar can therefore be adjusted without the use of tools.
Quick adjustment of the gymnastics bars
For each of the two types of attachment described above, we have developed a quick adjuster that differs slightly in terms of structure. Both versions are characterized by the fact that you can quickly adjust the height of the bar without tools.
Standard version with an M12 central screw
The central screw has a solid star grip, which you can use to tighten the rod on each side.
Special version with welded tabs
With this version we deliver per side 2 strong star grip nuts with which you can quickly tighten or loosen the two M12 screws.
In the larch wood area:
Adjusting the height of the bar is very easy and hassle-free. The gymnastics bar can be loosened with the welded-on safety strap using a screwdriver, the bar can be put in a new position and then the strap can be fixed again with the two screws so that it is absolutely non-rotating.
Here are the following 6 bar heights provided:
95, 115, 135, 155, 175, 195 cm height
Assembly and installation of the trimming station
In principle, the system can be set up at any location. The posts are fastened in approx. 60 cm deep concrete foundations.
The stainless steel posts are concreted directly into the concrete, the wooden posts in galvanized H-post bases.
For hassle-free assembly you will receive:
- All necessary elements and screw connections. All that is missing is the ready-mixed concrete (available in bags at hardware stores)

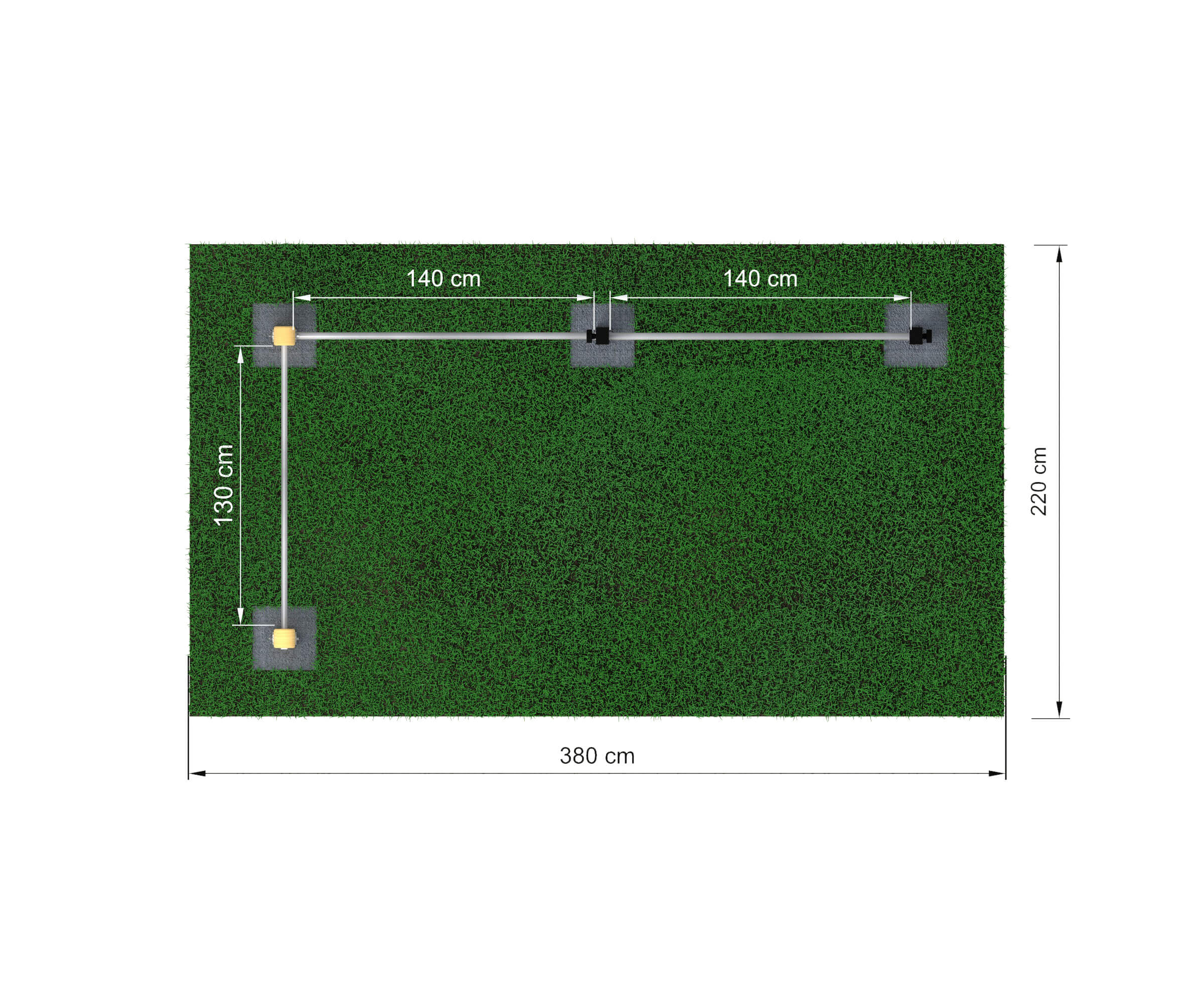

- Assembly instructions including foundation plan and view sketches
- Threaded rods including screw connections for the precise alignment of the system
Alignment using threaded rods
The parallel, vertical and aligned alignment of the posts to each other is of great importance for a stable installation of the system. With the threaded rods in size M12 and the gymnastics bars, the system can be precisely aligned before concreting. This ensures that the distance between the posts is accurate to the millimeter until the concrete has hardened.
The ground can be designed as a lawn, but fall protection mats or fall protection plates have even better properties. These items are available in square or rectangular shapes in specialty stores in a variety of colors. These mats have better fall protection cushioning than turf.
In addition, in combination with the wood and stainless steel products, you can achieve a visually very attractive design for your play area.
Floor design with fall protection plates
Use of the threaded rods
|Technical data||at the top of the tab TECHNICAL SPECIFICATIONS|

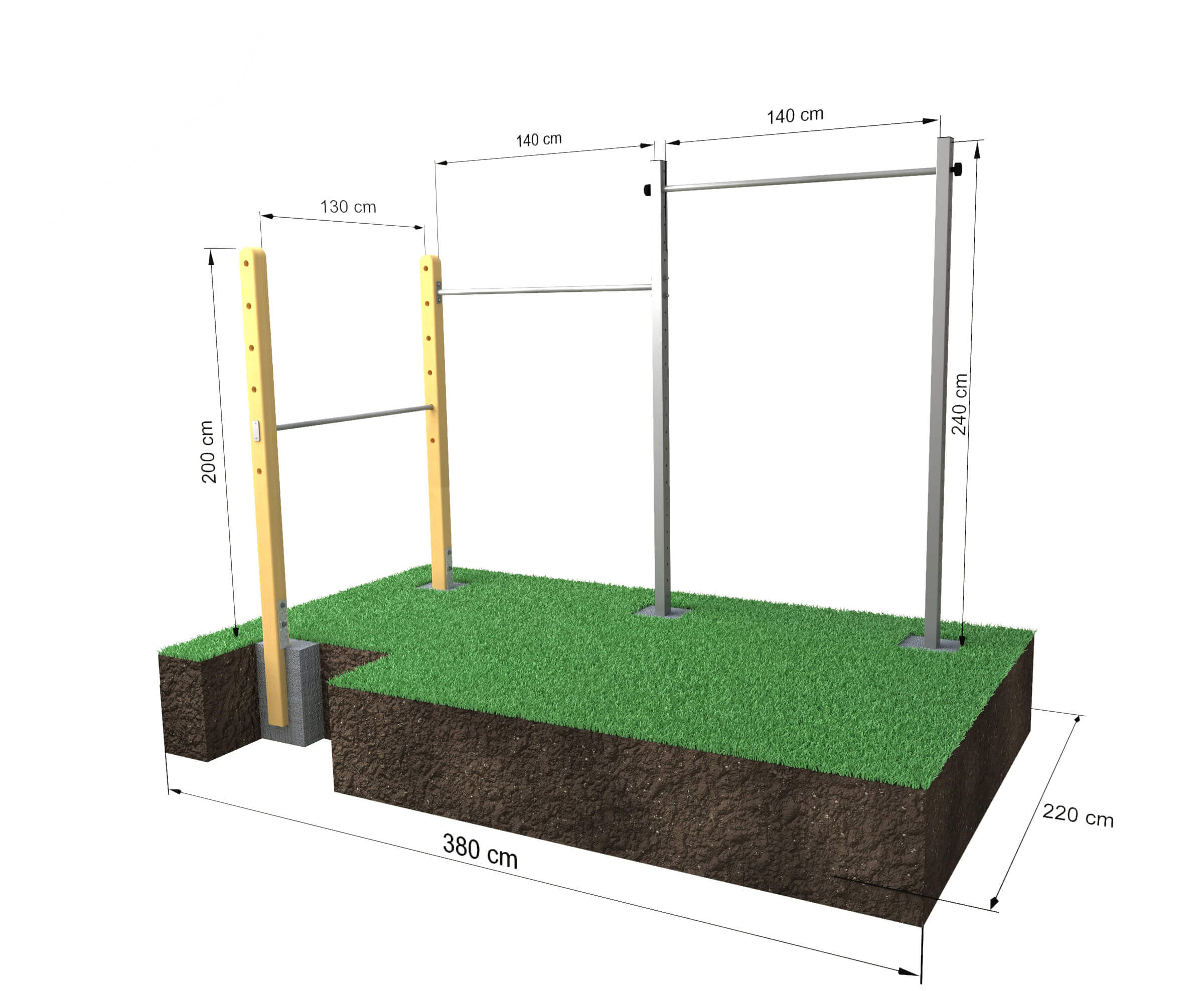

|dimensional sketch||in the pictures at the top of this page|
