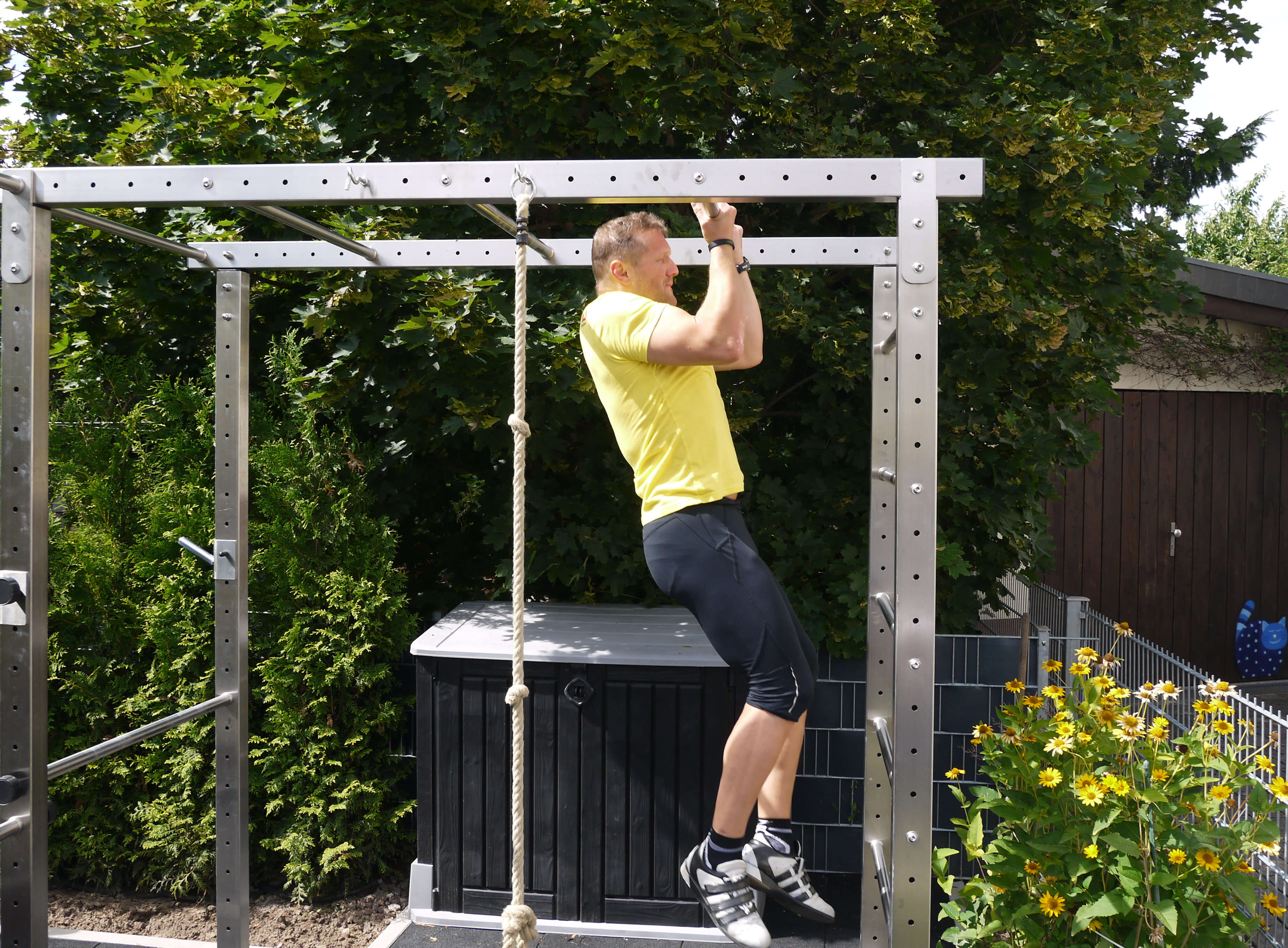

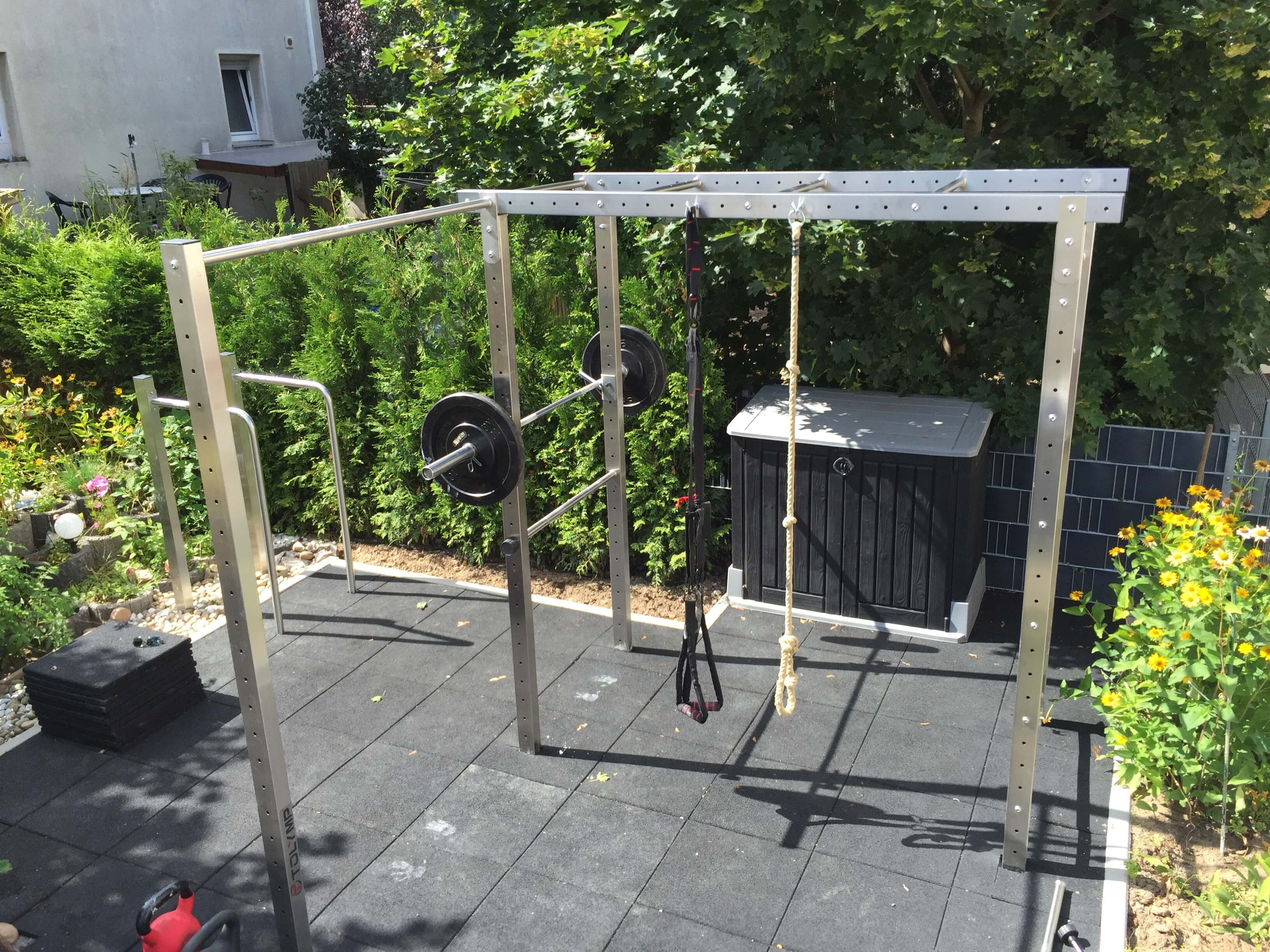

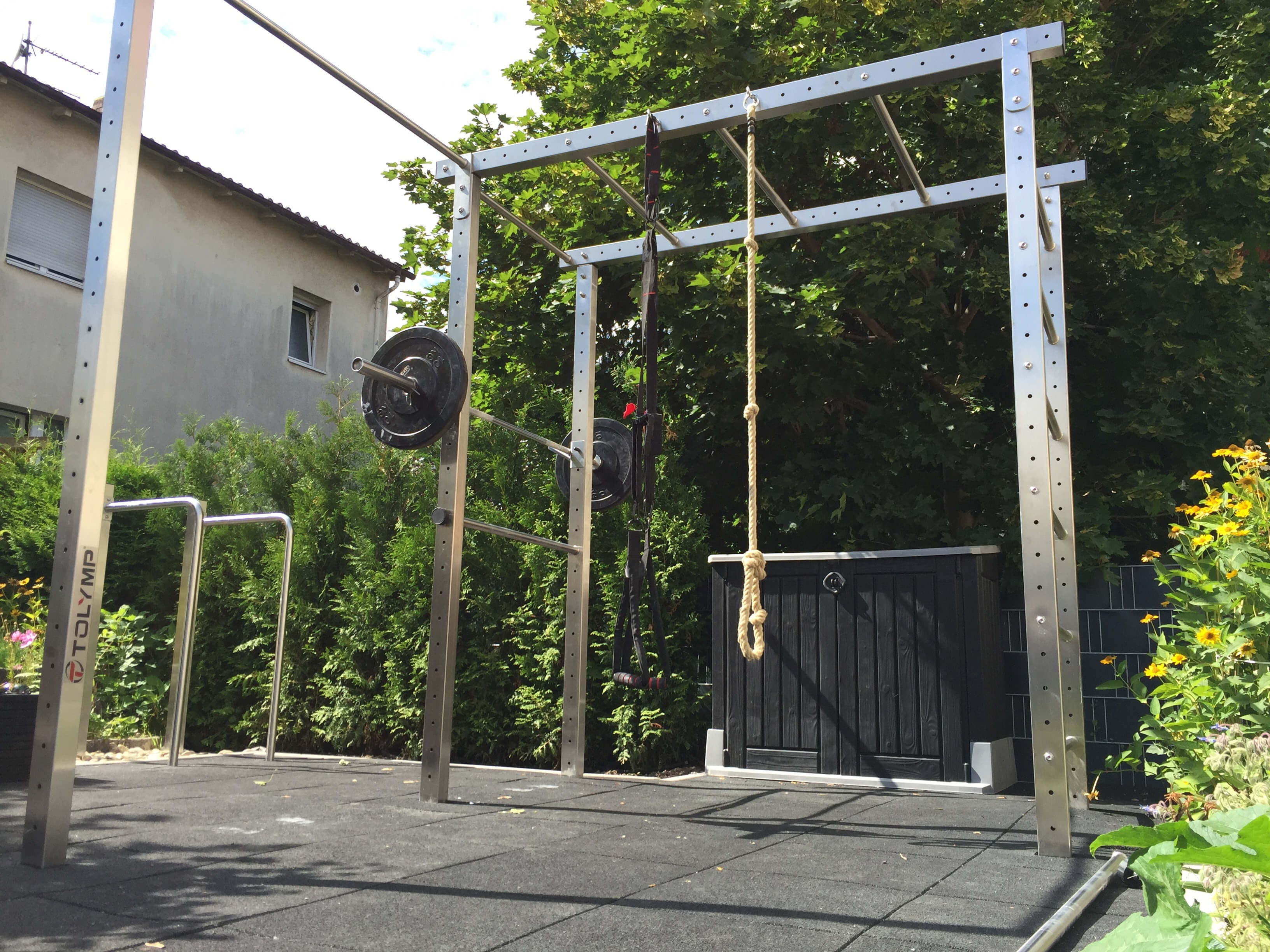

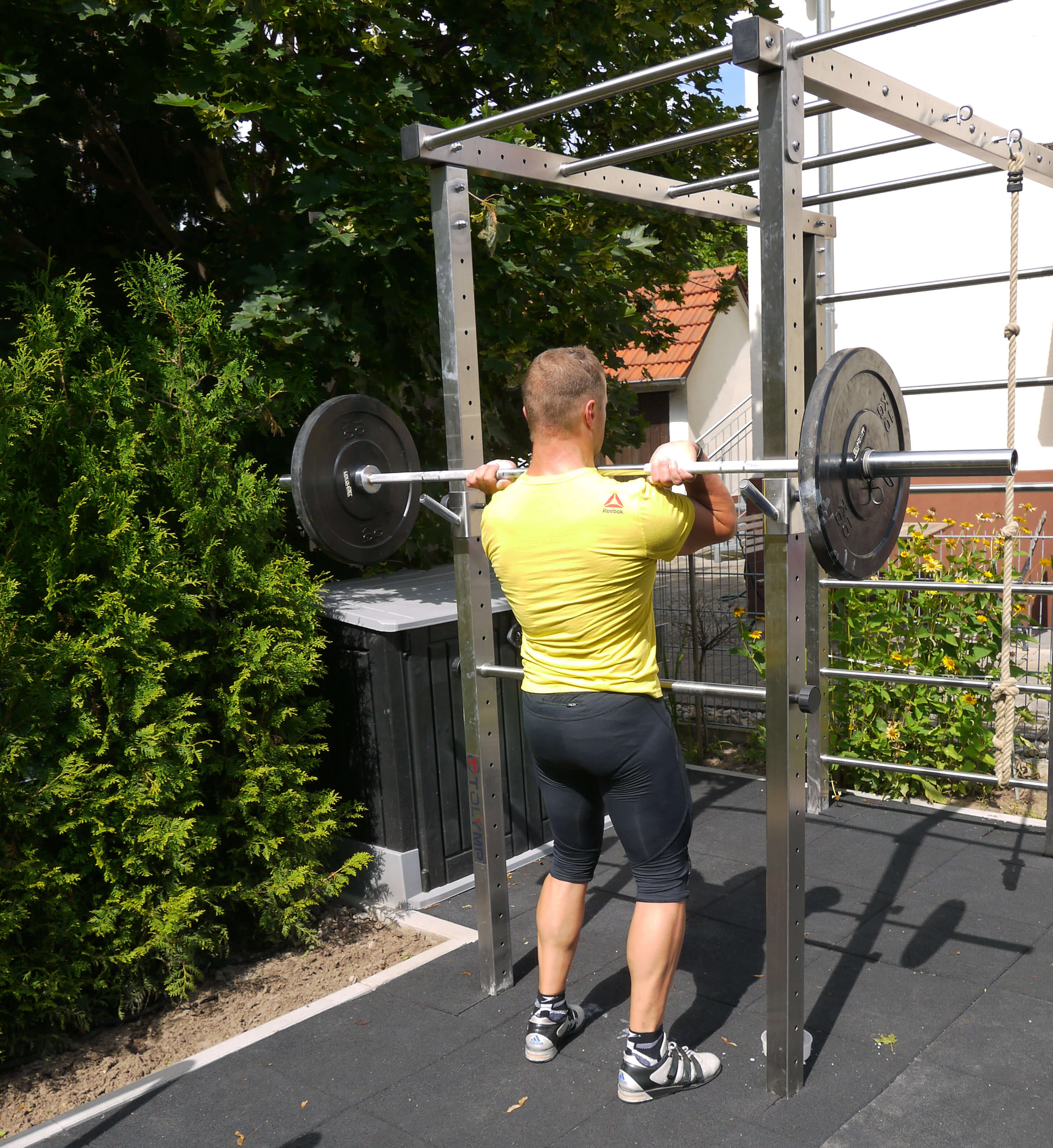

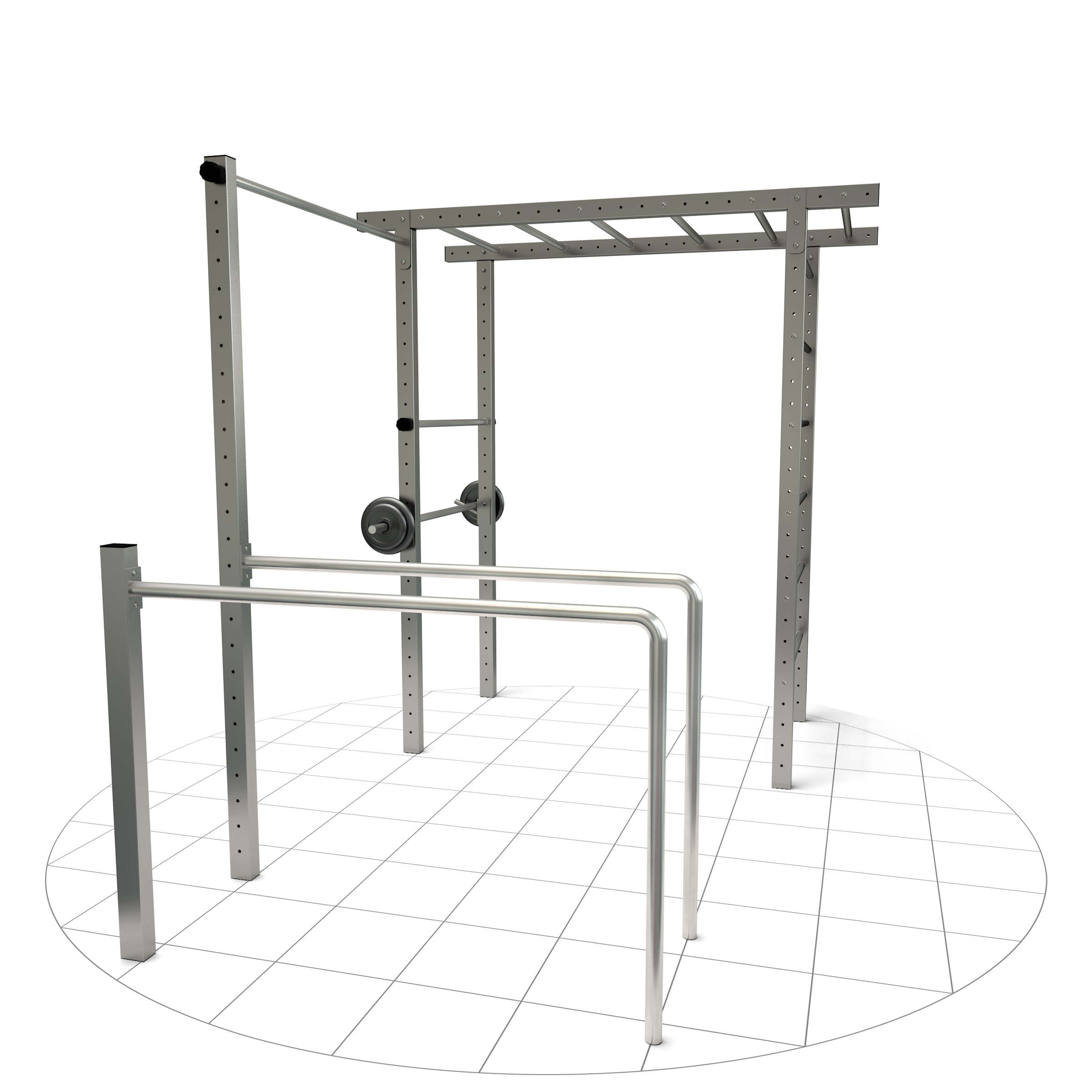

A station specially designed for outdoor fitness training: two pull-up bars, dip bars, ladder rails, monkey bar and a barbell holder (accessory)

A fully equipped facility for numerous outdoor training opportunities, but also usable by the whole family. The pull-up bars are adjustable in 25 steps, all rungs are also individually adjustable.

The two pull-up bars can be adjusted in 25 steps from 15 cm to 240 cm.
The vertical rung ladder also has 6 rungs, which you can mount individually in a 9cm pitch
The dip bar can alternatively be delivered in a bar length (70 cm instead of 150 cm). The bar width can be freely defined during construction.

Stable construction, made entirely in V2A stainless steel DIN 1.4301.

Our outdoor gym products are characterized by the use of high-quality material and a professionally executed and high-quality workmanship.
The material is completely machined, all welds are clean.
We provide a 10-year warranty on welds and rust-free.

The stainless steel components

Our products are characterized by the use of high-quality material as well as a professionally executed and high-quality workmanship. The material is completely machined, all welds are clean.

The dimensions of the vertical posts are 80 x 60 mm and a reinforced wall thickness of 3 mm.

Steelwood Starterhorn Edelstahl-Komponenten

Adjustment of the gymnastic bars

Execution of the chin-up bar
The attachment of the gymnastic bar as well as the adjustment of the height is done by means of two M12 star knob screws.
For this purpose, the turn bar has a CNC machined turned part at both ends, which is equipped with one M12 thread each. In addition, the two contact surfaces are provided with a knurl to the post to effectively prevent spinning of the rods.
The adjustment of the turntable height can thus be made without the use of tools.

Assembly and installation of the equipment

In principle, the equipment can be installed at any installation site. The posts are secured in concrete foundations, which are approx. 60 cm deep. The stainless steel posts are cemented directly into the cement, the wooden posts in galvanized wooden post anchors.

To ensure seamless installation, you will receive:

All the required fixtures and fittings. The only thing missing is the ready-mixed concrete (sacks of concrete mix are available at hardware shops)
Assembly instructions, incl. foundation plans and elevation sketches
Threaded rods incl. screw connections for millimetre precision alignment of the equipment

Alignment using threaded rods

The parallel, perpendicular and exact alignment of the posts is of huge importance for stable installation of the equipment. By using the M12 size threaded rods and the horizontal bars, the equipment can be exactly aligned before concreting. This way, the distance of the posts will be ensured with millimetre precision until the concrete hardens.

Floor design

Lawn can be used for the floor, but fall-protection mats or sheets have better properties. These items are available from specialty stores in square or rectangular shapes and in different colours. In comparison to grass, these mats offer better protection against falls.

Principle sketch

Floor design with fall protection plates

Use of threaded rods

***Further information***
Technical specifications	at the top of the tab TECHNICAL DATA
Dimensional sketch	at the top of this page at the pictures
Product information as a PDF file	start PDF-download
360 ° round view	at the top of this page
FAQ	at the page FAQ
Shipping	on the site Shipping

Data sheet

Required floor area including edge areas	270 x 370 cm
Grundfläche nach DIN EN 16630 bei öffentlicher Aufstellung	677 x 635 cm - 43 qm
Number of pull-up bars	2 bars
Execution of gymnastics bars	made of polished V2A stainless steel, diameter 33.7 mm, wall thickness 2.5 mm, length 140 cm
Height of gymnastics bars	Gymnastic bars adjustable in 9 cm grid between 15 and 240 cm (optional 300)
Post dimension and wall thickness	80x60x3 mm
Dip bars	with dip bars in length 150 cm, height 110 cm or 120 cm mountable, diameter 43 mm
Dip bars dimensions	Length 150 cm, height 110 cm or 120 cm, diameter 43 mm
Ladder	with ladder
Ladder dimensions	Width 100 cm, diameter 34 mm, consisting of 6 rungs individually adjustable
Human-Flag bar	available with Human-Flag pole
Burden	up to 150 kg per training element
Monkey-Bar	Width 100 cm
